Pawsome Pet Care - AI-Powered Veterinary Assistant with Asgardeo Authentication

This project demonstrates a sophisticated AI-powered pet care chatbot system that integrates a secured MCP (Model Context Protocol) server with an intelligent LangGraph agent, using Asgardeo as the OAuth2/OIDC provider for authentication and authorization.

🌟 Key Features

Secure MCP Server with Asgardeo OAuth2 authentication
Intelligent LangGraph Agent with dynamic context management
Multi-Pet Context Handling with automatic pet selection logic
JWT Token Validation with JWKS endpoint integration
OpenAI Integration for AI-powered pet name suggestions
RESTful Web Interface with CORS support
Real-time Chat with conversation memory

Prerequisites

Python 3.12 or higher
Asgardeo account and application setup
OpenAI API key (for pet name suggestions)
pip (Python package installer)

Project Structure

├── main.py              # FastMCP server with secured endpoints
├── agent.py            # LangGraph agent with dynamic context logic
├── jwt_validator.py    # JWT validation module for Asgardeo tokens
├── index.html          # Web interface for chat
├── .env                # Environment variables configuration
├── requirements.txt    # Python dependencies
└── README.md          # This file

Installation

Clone or download this project

Create a virtual environment (recommended)

python -m venv .venv
source .venv/bin/activate  # On Windows: .venv\Scripts\activate

Install required dependencies
```
pip install -r requirements.txt
```
Key dependencies include:
- fastmcp - Fast MCP server framework
- python-dotenv - Environment variable management
- openai - OpenAI API integration
- pyjwt - JWT token handling
- langgraph - Agent orchestration
- langchain-openai - OpenAI LangChain integration
- aiohttp - Async HTTP server
- httpx - HTTP client

Configure environment variables

Create a .env file in the project root directory:

# Asgardeo OAuth2 Configuration

## Asgardeo Configuration

## 1. Create an Asgardeo Application

   1. Login to your [Asgardeo](https://asgardeo.io/) account.
   2. Navigate to the **Applications** tab and select the **MCP Client Application**.
   3. Add your application name and callback URL.

## 2. Get Your Application Credentials

Once the application is created, get both the Client ID and Tenant Name:

Client ID: Found in the application's Protocol tab.

Tenant Name: Your organization's tenant name (visible in the URL).AUTH_ISSUER=https://api.asgardeo.io/t/CLIENT_ID=JWKS_URL=https://api.asgardeo.io/t//oauth2/jwks

OpenAI Configuration

OPENAI_API_KEY=


**Example with actual values:**
```bash
# Asgardeo OAuth2 Configuration
AUTH_ISSUER=https://api.asgardeo.io/t/pawsomepets
CLIENT_ID=abc123xyz789_client_id_from_asgardeo
JWKS_URL=https://api.asgardeo.io/t/pawsomepets/oauth2/jwks

# OpenAI Configuration
OPENAI_API_KEY=sk-proj-abc123xyz789

🔐 Asgardeo Configuration

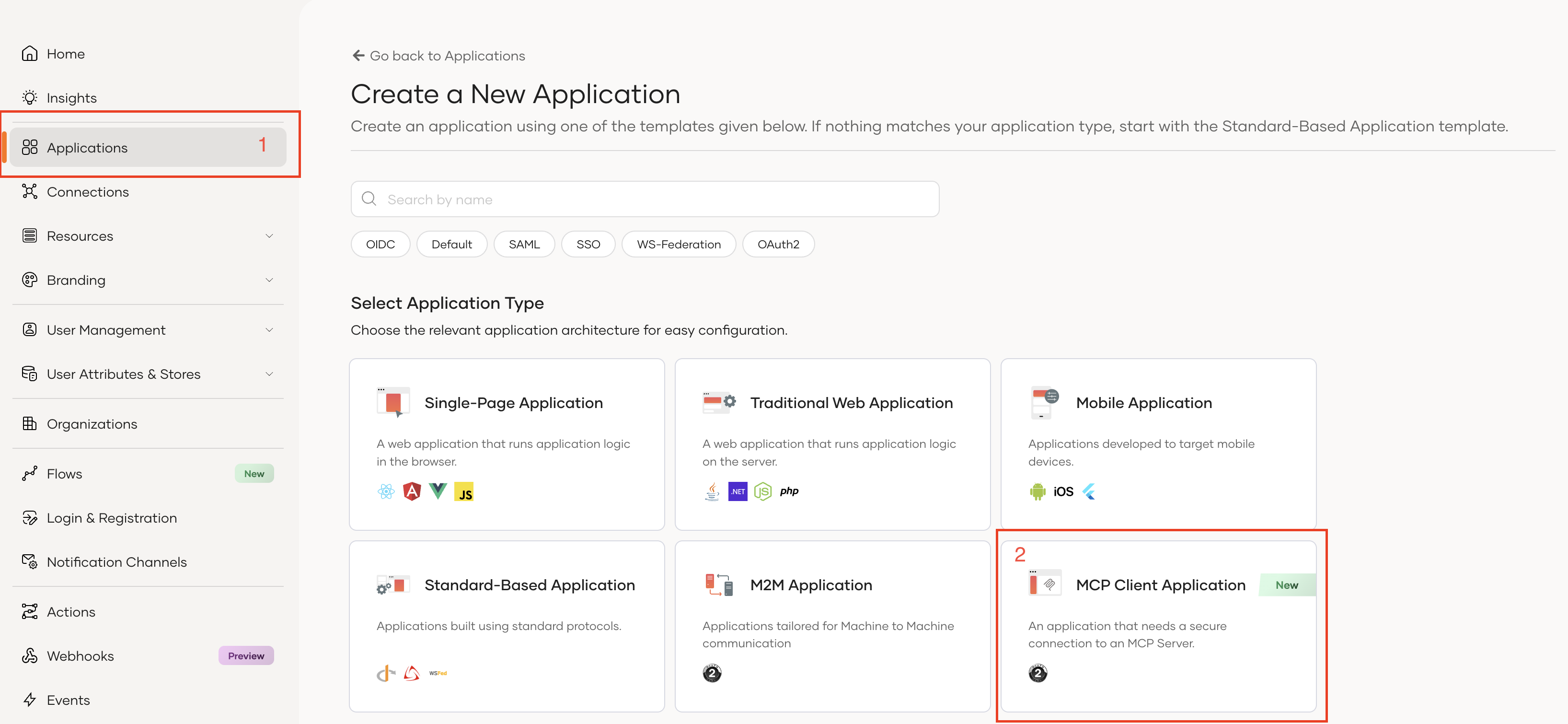

1. Create an MCP Client Application in Asgardeo

Login to your Asgardeo account at https://console.asgardeo.io
Navigate to the Applications tab and select MCP Client Application template
Configure your application:
- Application Name: Pawsome Pet Care MCP
- Authorized Redirect URLs: Add the callback URL for your client application
  - For MCP Inspector: http://localhost:6274/oauth/callback
  - For the agent: http://localhost:8080/callback

2. Get Your Application Credentials

Once the application is created, retrieve the following:

Client ID: Found in the application's Protocol tab
Tenant Name: Your organization's tenant name (e.g., pawsomepets)

3. Configure Required Scopes

Ensure your Asgardeo application has the following scopes enabled:

openid - Standard OpenID Connect scope
email - User email address access
profile - User profile information
internal_login - Required for user authentication

4. Update Environment Variables

Replace the placeholders in your .env file:

Replace <your-tenant> with your actual Asgardeo tenant name
Replace <your-client-id> with your OAuth2 client ID from Asgardeo

Security Note: Never commit your .env file to version control. Add .env to your .gitignore file.

Architecture Overview

MCP Server (`main.py`)

The MCP server provides secured tools for pet management:

JWT Token Verification
- Validates incoming tokens using Asgardeo JWKS endpoint
- Extracts user claims (subject, scopes, audience)
- Implements RFC 9728 Protected Resource Metadata
Available Tools:
- get_user_id_by_email - Retrieves user ID from email
- get_pets_by_user_id - Lists all pets for a user
- get_pet_vaccination_info - Fetches vaccination history
- book_vet_appointment - Books veterinary appointments
- cancel_appointment - Cancels existing appointments
- suggest_pet_names - AI-powered pet name suggestions via OpenAI

LangGraph Agent (`agent.py`)

The agent orchestrates intelligent conversations with dynamic context management:

Authentication Flow
- Implements OAuth2 Authorization Code Flow with PKCE
- Automatically opens browser for Asgardeo login
- Retrieves user email from ID token and SCIM2/Me endpoint
- Exchanges authorization code for access token
State Management
- Maintains conversation history per session
- Caches user context (user ID, pets, active pet)
- Dynamically resolves pet context from user messages
Graph Nodes:
- load_context - Loads user data at conversation start
- classify - Determines user intent
- mcp_agent - Executes MCP tool calls with dynamic context
- greeting, services, pricing, general - Intent-specific handlers
Multi-Pet Logic:
- Single pet: Automatic context selection
- Multiple pets: Detects pet names in messages or asks for clarification
- No pets: Informs user appropriately

Running the System

1. Start the MCP Server

python main.py

The server will start on http://localhost:8000 using streamable-http transport.

2. Start the Agent Server

python agent.py

The agent will:

Open your browser for Asgardeo authentication
Wait for authorization callback
Retrieve your user email
Start the chat server on http://localhost:8080

3. Access the Web Interface

Open http://localhost:8080 in your browser to interact with the chatbot.

Testing with MCP Inspector

Setup MCP Inspector

Install and run MCP Inspector:
```
npx @modelcontextprotocol/inspector
```
Note: Ensure version 0.16.3 or higher.
Configure Inspector Callback:
- Add http://localhost:6274/oauth/callback to your Asgardeo application's authorized redirect URLs

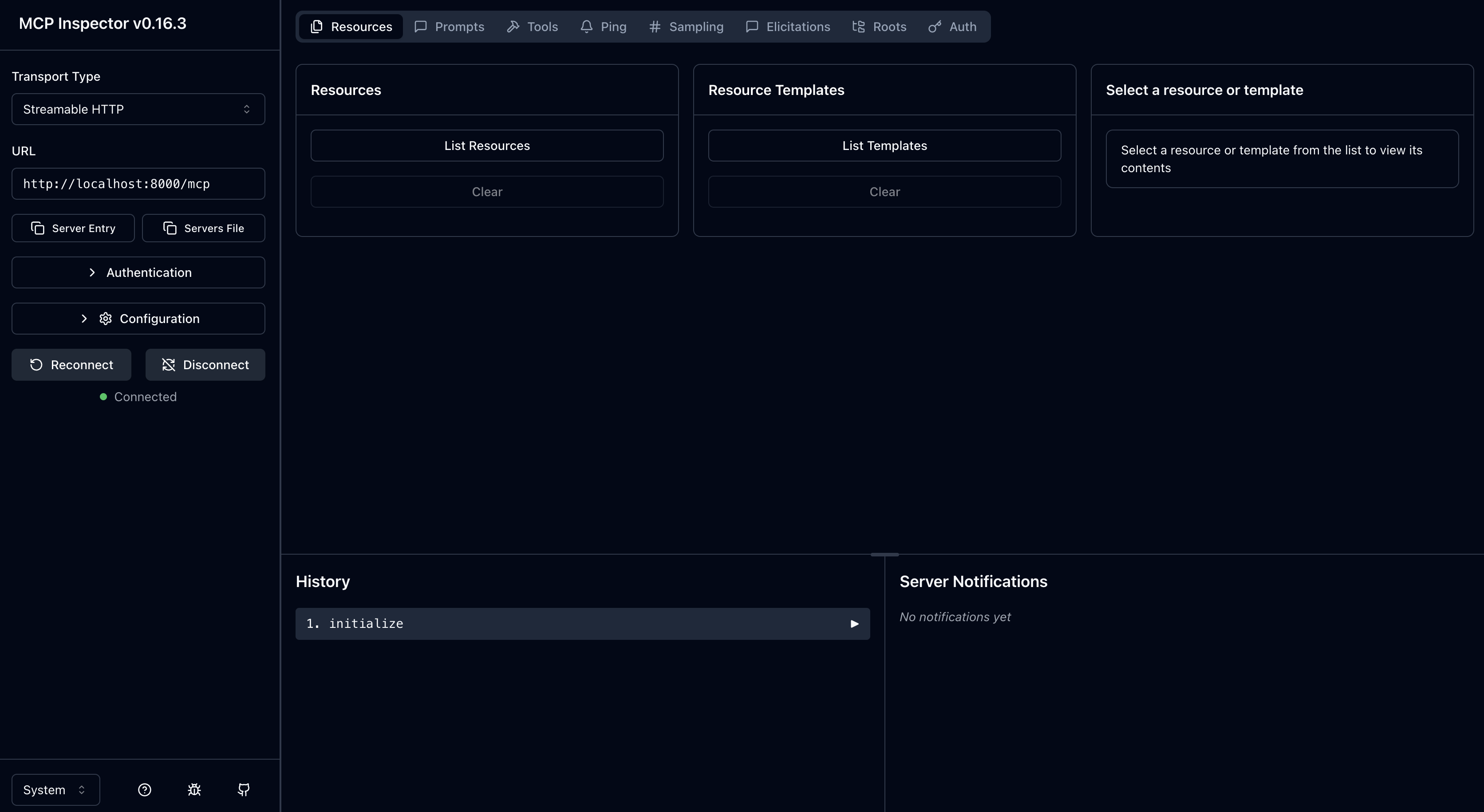

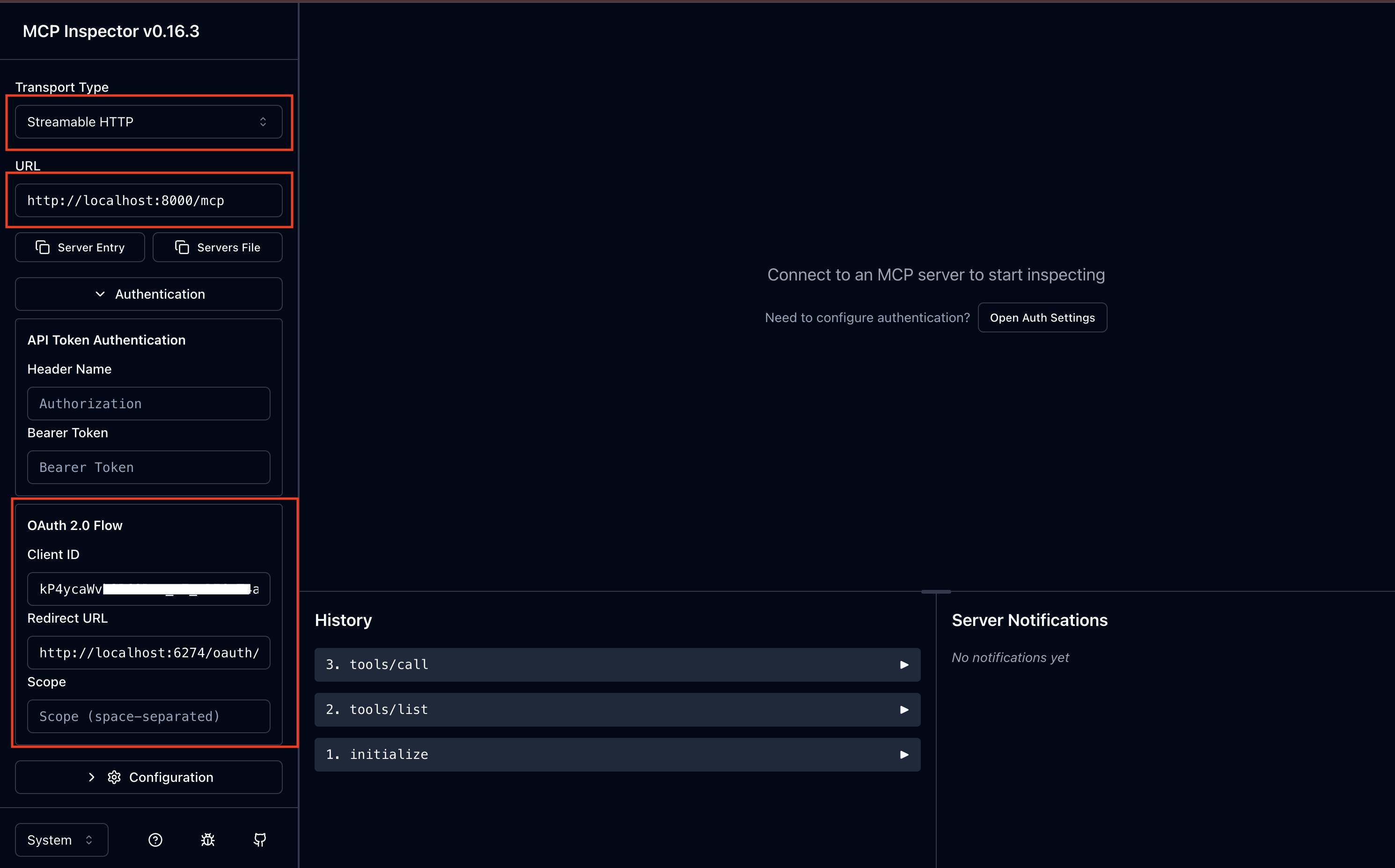

Connect to MCP Server:
- Open the Inspector URL (e.g., http://localhost:6274/?MCP_PROXY_AUTH_TOKEN=<token>)
- Configure the server connection:
  - Transport: HTTP SSE
  - URL: http://localhost:8000/mcp
  - Auth: OAuth2 with Asgardeo settings
Test Authentication:
- Click Connect
- You'll be redirected to Asgardeo for login
- After successful authentication, you can test the tools

Sample Conversation Flows

Example 1: Single Pet User

User: Hi!
Agent: Welcome back! I've loaded your pet details. How can I help?

User: What are Buddy's vaccinations?
Agent: [Automatically calls get_pet_vaccination_info with Buddy's ID]
       Buddy's vaccination records show:
       - Rabies (Jan 15, 2024) - Next due: Jan 15, 2025
       - DHPP (Mar 20, 2024) - Next due: Mar 20, 2025
       - Bordetella (Jun 10, 2024) - Upcoming: Dec 10, 2024

Example 2: Multiple Pet User

User: Show me vaccination info
Agent: Which pet are you referring to? You have:
       - Buddy (Dog)
       - Spot (Dog)

User: Buddy
Agent: [Calls get_pet_vaccination_info with Buddy's ID]
       [Returns vaccination details...]

Example 3: Booking Appointment

User: Book an appointment for Buddy next Monday at 2 PM for checkup
Agent: [Calls book_vet_appointment]
       Appointment confirmed!
       - Pet: Buddy
       - Date: 2025-11-24
       - Time: 2:00 PM
       - Reason: Checkup
       - Veterinarian: Dr. Smith

Security Features

JWT Token Validation
- Validates tokens against Asgardeo JWKS endpoint
- Verifies issuer, audience, and expiration
- Extracts and validates scopes
Authorization Flow
- OAuth2 Authorization Code Flow with PKCE
- Secure token exchange
- No client secret required (PKCE protects public clients)
Scope-Based Access Control
- Tools require valid access tokens
- Future enhancement: Scope-specific tool access
User Context Isolation
- Each user sees only their own pets
- Session-based conversation memory
- Context caching per session ID

Troubleshooting

Email Not Retrieved from ID Token

The agent includes fallback logic to retrieve email from SCIM2/Me endpoint if not present in ID token:

# Fallback to SCIM2/Me endpoint
scim_url = f"{base_url}/scim2/Me"
scim_resp = await client.get(
    scim_url,
    headers={"Authorization": f"Bearer {access_token}"}
)

Token Validation Failures

Check the following:

JWKS URL is correct and accessible
Issuer URL matches exactly (including tenant)
Client ID is correct
Token has not expired

Connection Issues

Ensure MCP server is running on http://localhost:8000
Verify agent server is running on http://localhost:8080
Check firewall settings for local ports

Advanced Configuration

Custom Port Configuration

Modify port settings in the respective files:

MCP Server (main.py):

mcp.run(transport="streamable-http", port=8000)

Agent Server (agent.py):

site = web.TCPSite(runner, 'localhost', 8080)

Adding New Tools

To add new MCP tools:

Define the tool in main.py:

@mcp.tool()
async def my_new_tool(param: str) -> dict:
    """Tool description"""
    # Implementation
    return {"result": "data"}

The agent will automatically discover and use the new tool.

Contributing

Contributions are welcome! Please ensure:

Code follows PEP 8 style guidelines
All new tools include proper authentication checks
Documentation is updated for new features

License

This project is provided as-is for demonstration purposes.

Powered by Asgardeo - Enterprise-grade identity and access management for modern applications.
