WhatsApp MCP Stream

A WhatsApp MCP server built around Streamable HTTP transport, using Baileys for WhatsApp connectivity, with a web admin UI and bidirectional media flow (upload + download).

Key points:

Transport: Streamable HTTP at /mcp
Engine: Baileys

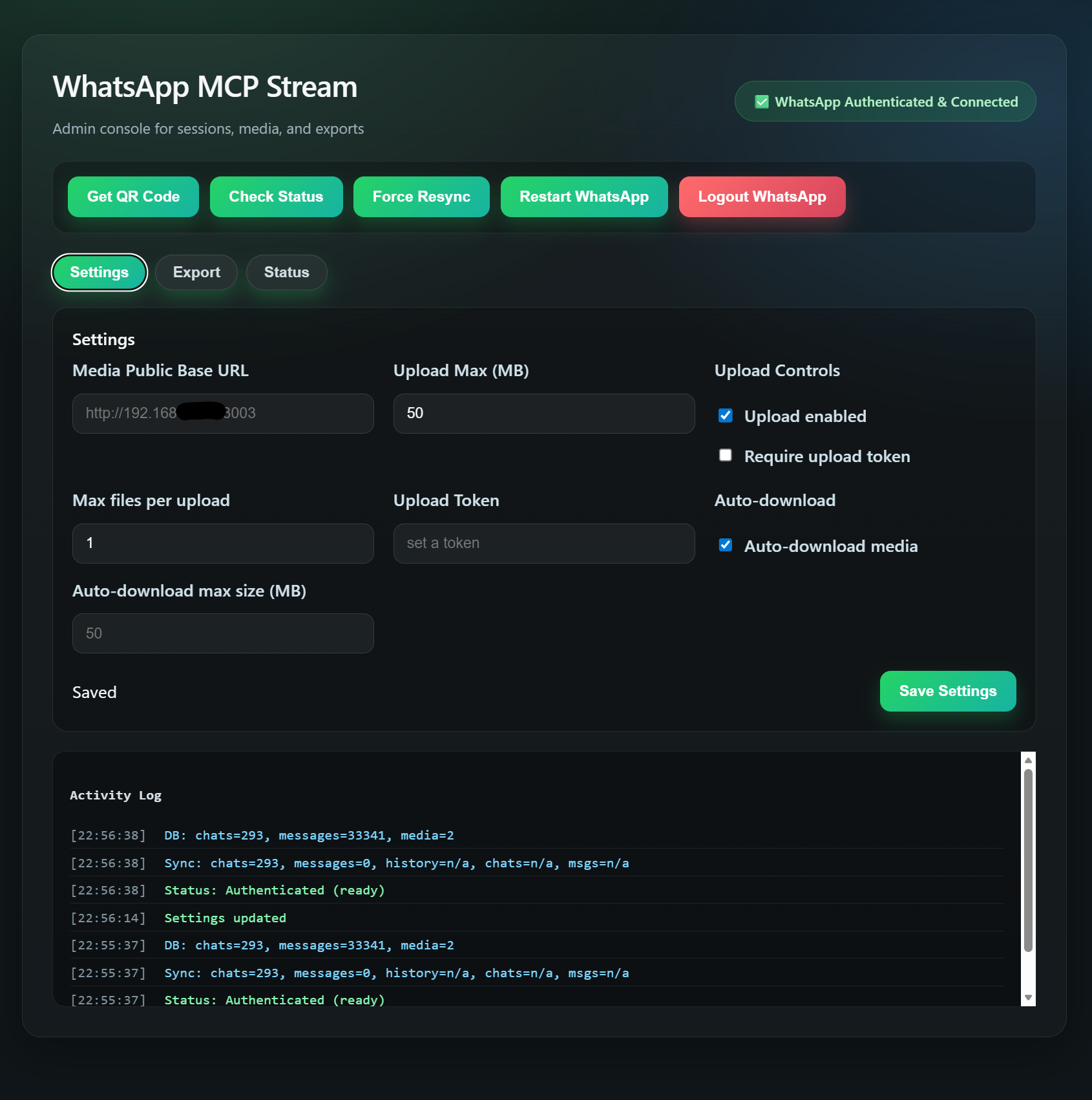

Admin UI: QR, status, logout, runtime settings
Media: upload endpoints + /media hosting + MCP download tool

Quick Start (Docker)

# build and run

docker compose build

docker compose up -d

The server will be available at:

Admin UI: http://localhost:3003/admin
MCP endpoint: http://localhost:3003/mcp
Media files: http://localhost:3003/media/<filename>

Runtime Settings

Settings can be edited in the admin UI and are persisted to SETTINGS_PATH (defaults to MEDIA_DIR/settings.json).

Supported settings:

media_public_base_url
upload_max_mb
upload_enabled
max_files_per_upload
require_upload_token
upload_token

Authentication

Built-in authentication is not implemented yet. In production, use a gateway that enforces auth. This project works well behind authmcp-gateway:

https://github.com/loglux/authmcp-gateway

Media Upload API

Base64 JSON:

curl -X POST http://localhost:3003/api/upload \
  -H "Content-Type: application/json" \
  -d {filename:photo.jpg,mime_type:image/jpeg,data:<base64>}

Multipart (recommended for large files):

curl -X POST http://localhost:3003/api/upload-multipart \
  -F "file=@/path/to/file.jpg"

Both return url and (if configured) publicUrl.

Upload Auth (Optional)

If require_upload_token=true, provide a token with either:

x-upload-token: <token>
Authorization: Bearer <token>

MCP Transport

The server exposes Streamable HTTP at /mcp.

Typical flow:

POST /mcp with JSON-RPC initialize
Use the returned mcp-session-id header for subsequent requests
POST /mcp for tool calls

MCP Tools

Auth

Tool	Description
`get_qr_code`	Get the latest WhatsApp QR code as an image for authentication.
`check_auth_status`	Check if the WhatsApp client is authenticated and ready.
`logout`	Logout from WhatsApp and clear the current session.

Contacts

Tool	Description
`search_contacts`	Search contacts by name or phone number.
`get_contact_by_id`	Get contact details by JID.

Chats

Tool	Description
`list_chats`	List chats with metadata and optional last message.
`get_chat_by_id`	Get chat metadata by JID.
`get_direct_chat_by_contact_number`	Resolve a direct chat JID by phone number.

Messages

Tool	Description
`list_messages`	Get messages from a specific chat.
`get_message_by_id`	Get a specific message by ID (`jid:id`).
`get_message_context`	Get recent messages around a specific message.
`get_last_interaction`	Get the most recent message for a JID.
`send_message`	Send a text message to a person or group.

Media

Tool	Description
`send_media`	Send media (image/video/document/audio).
`download_media`	Download media from a message.

Utility

Tool	Description
`ping`	Health check tool.

License

MIT
