memviz

memviz

A local vector memory explorer with a modern UI inspired by Supabase and Pinecone. Browse, search, visualize and manage the SQLite-vec database created by MCP Memory Service.

A quick note

I'm a sysadmin by trade, not a developer. My coding background is some C++ from many years ago. I built memviz entirely through vibe coding with Claude Code as a way to test AI-assisted development workflows. The whole thing was built in about two days.

It works, it has 349 tests, and I use it daily. But the code reflects the fact that an AI wrote most of it while I steered. If you spot rough edges, odd patterns, or things that could be done better, I'd genuinely appreciate the feedback. PRs and issues are very welcome.

Features

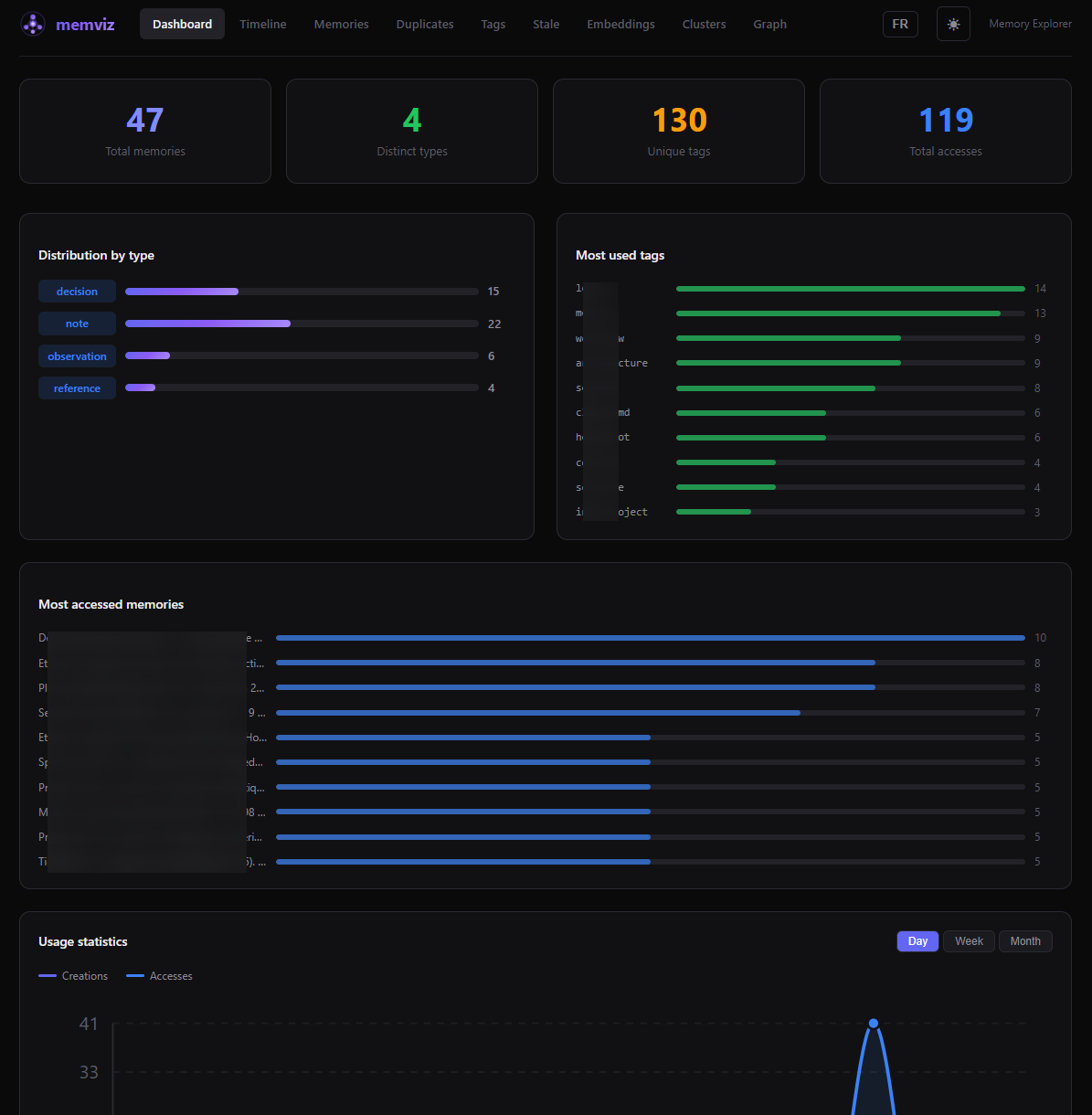

• Dashboard - Overview with stats, top accessed memories, and usage charts (day/week/month)

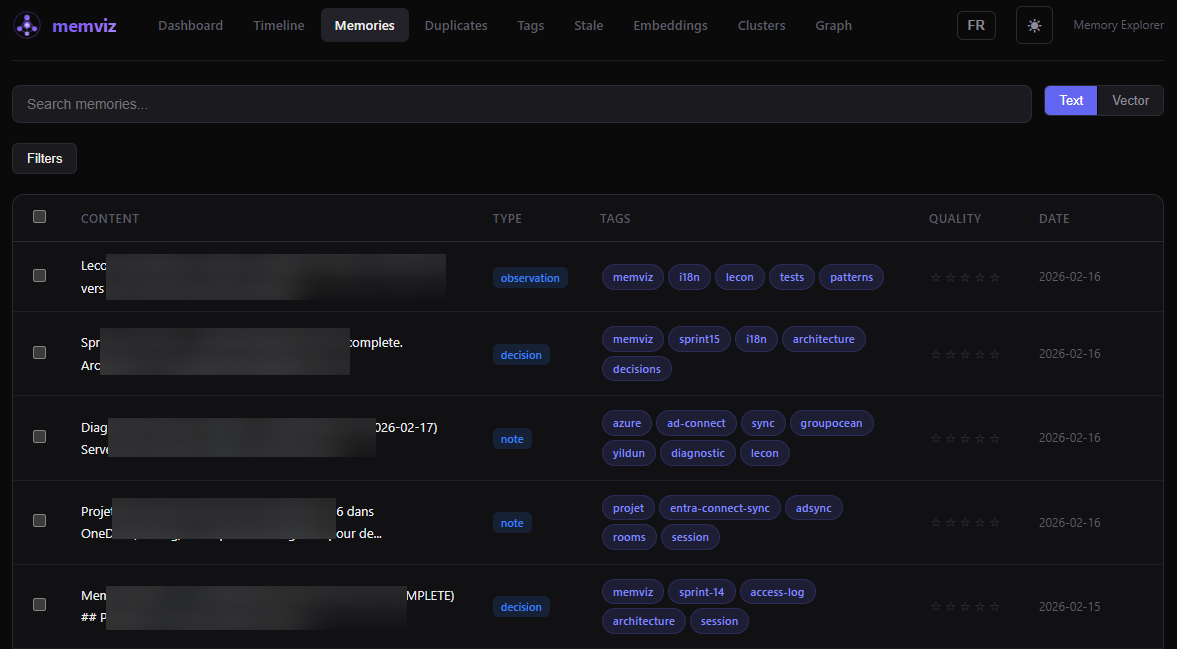

• Memory list - Browse, filter (type, tags, date, quality), full-text search, and vector similarity search
• Memory detail - View and edit content, metadata, tags, and quality rating

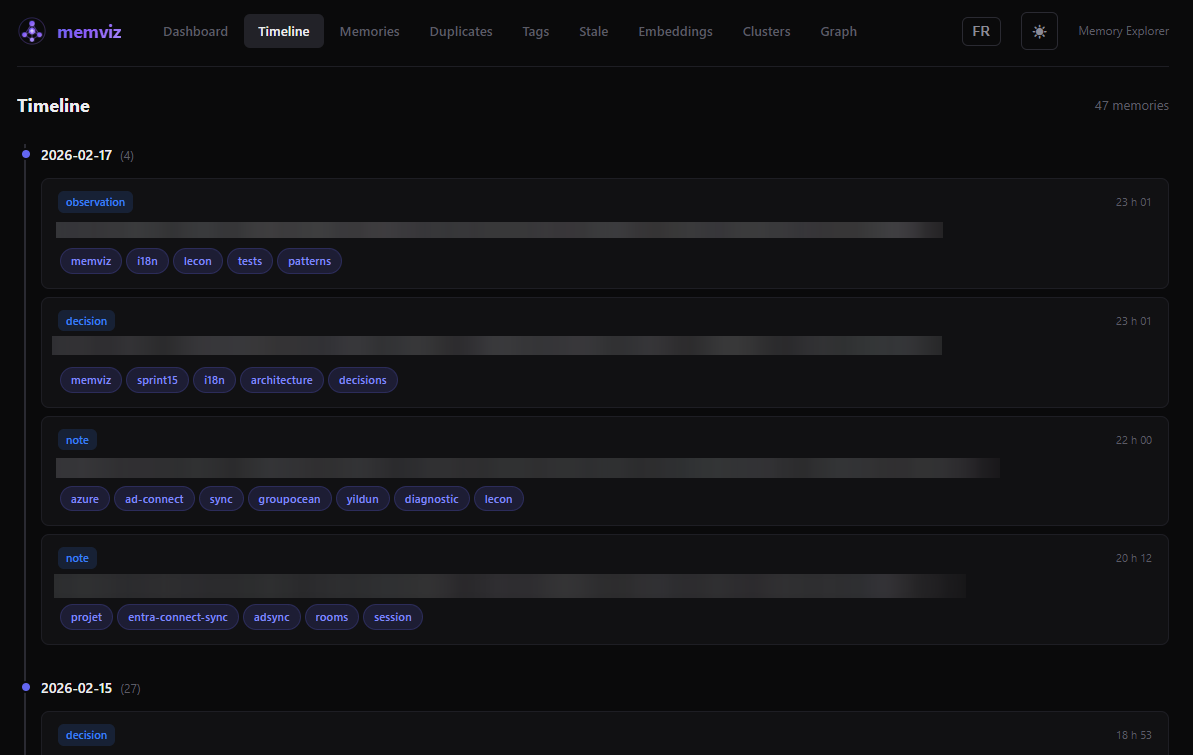

• Timeline - Chronological view grouped by day with type badges

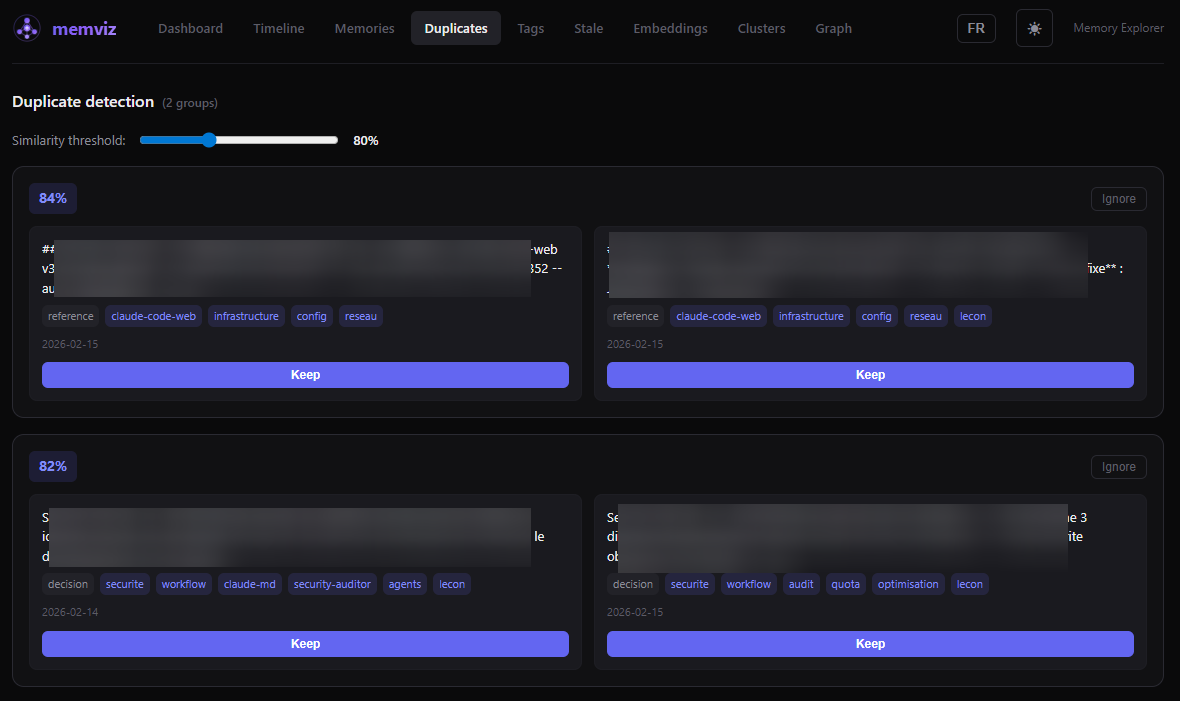

• Duplicates - Detect near-duplicate memories using vector similarity with adjustable threshold
• Tags management - Rename, delete, and merge tags across all memories
• Stale memories - Find old, low-quality memories to clean up
• 2D embedding projection - UMAP scatter plot of your entire memory space with interactive zoom/pan
• Semantic clustering - Automatic grouping by vector proximity with cluster visualization

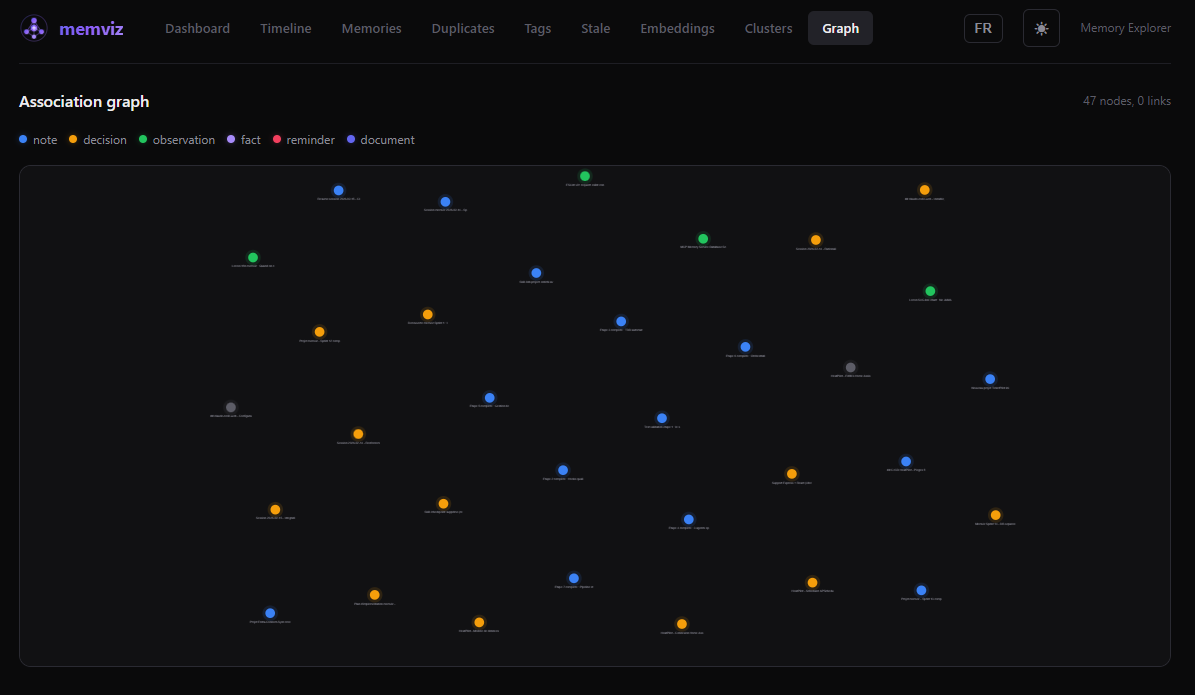

• Association graph - Force-directed graph of memory relationships
• Bulk operations - Select multiple memories for batch delete, tag, or retype
• Import / Export - JSON import and export of memories
• Dark / Light theme - Toggle with system preference detection
• EN / FR language toggle - Full interface translation with localStorage persistence
• Keyboard shortcuts - j/k navigation, / search, ? help, and more
• Security - Helmet headers, rate limiting, optional API token, Zod validation, localhost-only binding

Screenshots

Prerequisites

• Node.js 20 or later
• A SQLite-vec database created by MCP Memory Service. This is the database memviz reads from. If you use Claude Code or Claude Desktop with the memory MCP server, you already have one.

Quick start

# Clone the repo
git clone https://github.com/pfillion42/memviz.git
cd memviz

# Backend
cd server
npm install
cp .env.example .env
# Edit .env and set MEMORY_DB_PATH to your SQLite-vec database path
npm run dev

# Frontend (in another terminal)
cd client
npm install
npm run dev

Open http://localhost:5173 in your browser.

Windows desktop shortcut (optional)

The repo includes PowerShell launcher scripts and an .ico icon file for a one-click desktop experience on Windows:

# Start both servers (minimized) + open browser
.\start-memviz.bat

# Stop both servers
.\stop-memviz.bat

To create a desktop shortcut: right-click on start-memviz.bat > Send to > Desktop (create shortcut), then change the icon to memviz.ico from the repo root.

The start script detects if servers are already running, waits for health checks (60s timeout), and opens your browser automatically.

Configuration

All configuration is done through environment variables in server/.env:

Architecture

memviz/
├── server/          # Express + TypeScript API
│   ├── src/
│   │   ├── routes/  # REST endpoints under /api/
│   │   ├── middleware/
│   │   └── index.ts
│   └── tests/       # Vitest (213 tests)
├── client/          # React + Vite + TypeScript
│   ├── src/
│   │   ├── pages/       # 10 pages
│   │   ├── components/  # 11 reusable components
│   │   ├── hooks/       # Custom React Query hooks
│   │   └── App.tsx
│   └── tests/       # Vitest + Testing Library (136 tests)
└── .github/workflows/   # CI: lint, typecheck, test, build

Stack: Express, better-sqlite3, sqlite-vec, umap-js, Zod | React 18, React Query, React Router, react-force-graph-2d, Vite, Vitest

Tests

# Run all backend tests
cd server && npm test

# Run all frontend tests
cd client && npm test

# Watch mode
cd server && npm run test:watch
cd client && npm run test:watch

349 tests total (213 server + 136 client).

Security

• Binds to 127.0.0.1 by default (not exposed to the network)
• CORS restricted to configured origins
• Helmet HTTP security headers
• Rate limiting (100 requests / 15 min)
• Optional Bearer token authentication
• Zod schema validation on all write endpoints
• FTS5 query sanitization and LIKE pattern escaping
• JSON body size limit (5 MB)

Keyboard shortcuts

Acknowledgments

memviz exists because of MCP Memory Service by doobidoo, which creates and manages the SQLite-vec database that memviz explores. Huge thanks for building it.

Built with umap-js, sqlite-vec, React, Express, Vite, React Query, react-force-graph-2d, and Vitest.

Contributing

See CONTRIBUTING.md for guidelines.

License

MIT
