roblox-studio connects Claude Code, Codex, Cursor, Gemini CLI, and other coding agents to the place open in Roblox Studio.

The agent can inspect the hierarchy, draft a SceneSpec, create terrain and geometry, write scoped Luau, patch generated instances, mirror code to Rojo, validate the map, and coordinate playtests. Studio changes use Undo recording and new builds stay under Workspace/MapDrafts.

Prompt -> inspect -> SceneSpec -> dry run -> apply -> validate -> playtest

Install

Claude Code

The marketplace plugin includes the skill and starts the local MCP server:

/plugin marketplace add ShiroKSH/skills
/plugin install roblox-studio@skills

Codex

npx skills add ShiroKSH/skills -g
codex mcp add roblox-studio -- npx -y github:ShiroKSH/skills

Restart Codex after adding the MCP server.

Cursor, Copilot, Gemini CLI, and other hosts

Install the skill:

npx skills add ShiroKSH/skills -g

Add the bridge as a stdio MCP server:

{
  "mcpServers": {
    "roblox-studio": {
      "command": "npx",
      "args": ["-y", "github:ShiroKSH/skills"]
    }
  }
}

Requirements: Node.js 20 or newer and Roblox Studio.

Install the Studio plugin

Clone the repository and run the installer:

git clone https://github.com/ShiroKSH/skills.git
cd skills
npm install
npm run install:plugin

The command builds dist/RobloxStudioBridge.rbxm with Rojo and copies it into the local Roblox plugins directory on Windows or macOS. The project pins Rojo in rokit.toml.

Manual fallback: run npm run build:plugin, then copy the .rbxm file into %LOCALAPPDATA%\Roblox\Plugins on Windows or ~/Documents/Roblox/Plugins on macOS.

Connect Studio

1. Enable HTTP requests for the place.
2. Open the Roblox Studio Bridge plugin panel.
3. Keep host 127.0.0.1 and port 3765.
4. Paste the token printed by the MCP server and select Connect.
5. Run studio_ping from the agent.

The token is generated locally, is never a Roblox credential, is not persisted by the plugin, and is cleared from the panel after connection. Set ROBLOX_STUDIO_BRIDGE_TOKEN only when a stable local token is needed.

What the bridge exposes

• Bounded hierarchy and property inspection.
• SceneSpec map builds and graybox passes.
• Terrain generation through Studio APIs.
• Batched create, set, ensure, and delete operations inside managed roots.
• Camera control and viewport raycast probes for visual checks.
• Doors, buttons, elevators, teleporters, checkpoints, and scoped runtime scripts.
• Geometry validation, map-readiness contracts, playtest requests, and Studio output.
• Rojo projects under generated/rojo/<mapName> when codegen.target is rojo or both.

The full MCP tool list and protocol are documented in docs/protocol.md. SceneSpec fields are defined in docs/scene-spec.schema.json.

Map workflow

1. Run studio_ping and inspect the relevant place hierarchy.
2. Build a SceneSpec rooted at Workspace/MapDrafts.
3. Run map_apply_scene_spec with dryRun=true.
4. Review the target root, object count, touched services, scripts, filesystem writes, terrain, and risks.
5. Apply with dryRun=false.
6. Run map_validate on the returned map root with strict geometry enabled.
7. Run map_readiness_check for playable builds.
8. Inspect several camera angles, playtest interactions, read Studio output, and patch concrete failures.

Start with examples/simple-obby.scene.json for a minimal spec or examples/vertical-bazaar.scene.json for a layered map. Every apply writes a filesystem manifest under logs/manifests/ and a SceneManifest value under the generated map root.

Build evolution

These are cropped Roblox viewport frames from real iterations. Desktop chrome, chats, usernames, paths, tokens, and unrelated files are excluded.

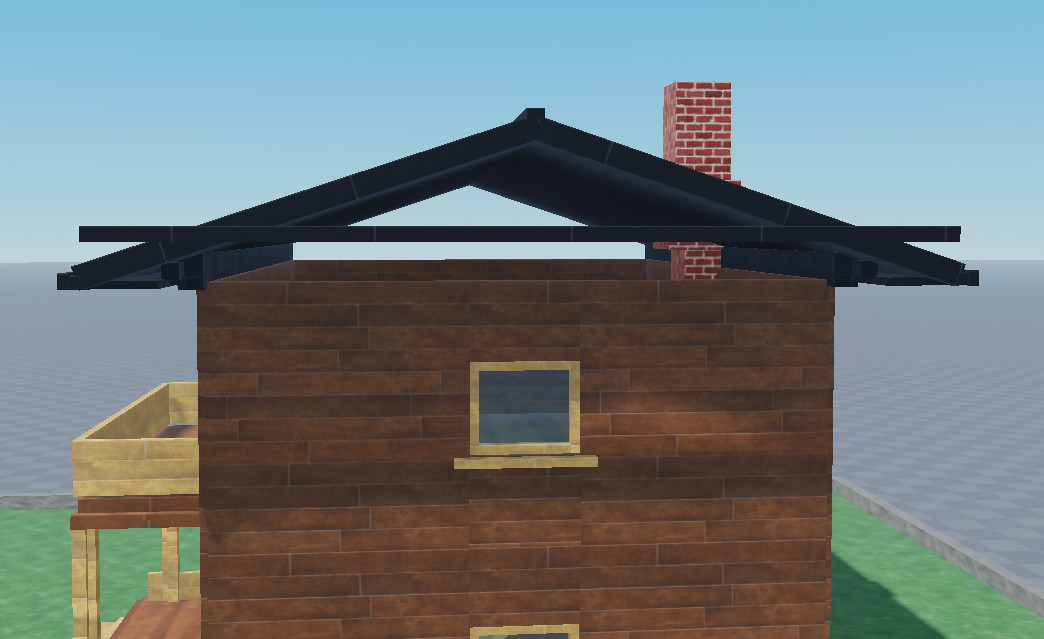

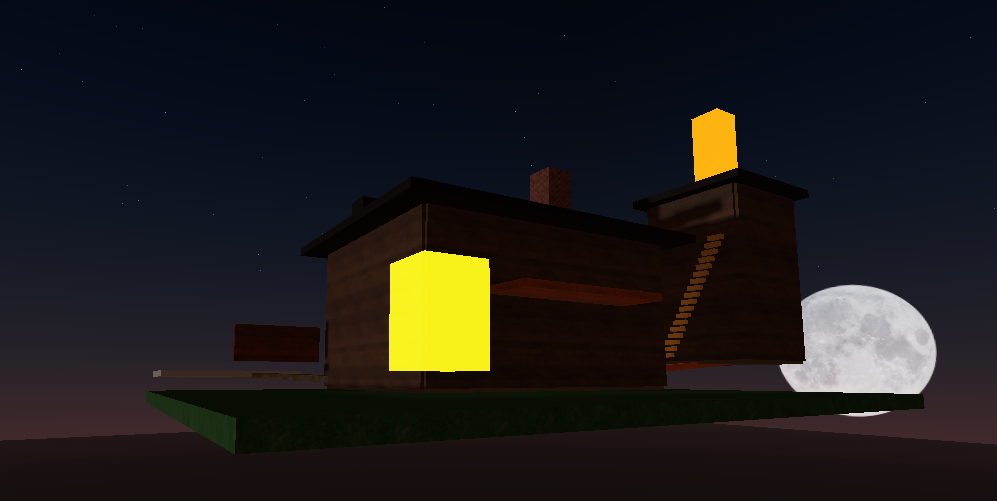

V1 first pass	V4 exterior pass

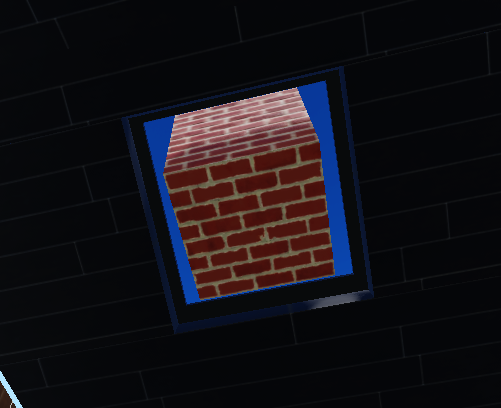

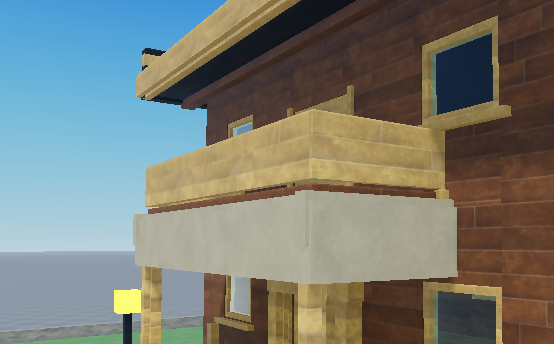

V4 balcony	V4 window and chimney

Safety

• The HTTP bridge binds to loopback only; the Studio plugin rejects non-loopback hosts.
• Every plugin endpoint except minimal health status requires the shared token.
• Poll credentials are sent in a POST body, not a URL.
• Dangerous Luau execution is disabled by default and filtered again in Studio.
• Deletes require DELETE_MAP_DRAFTS and remain limited to managed build roots.
• External asset IDs require an explicit allowlist.
• Command logs redact tokens, source, code, cookies, passwords, and confirmation values.
• Studio changes use ChangeHistoryService recording with a waypoint fallback.

See docs/safety.md for the full boundary.

Final result

The same workflow can move from an early blockout to a connected, interactive Roblox place, then keep repairing it from validation and playtest feedback:

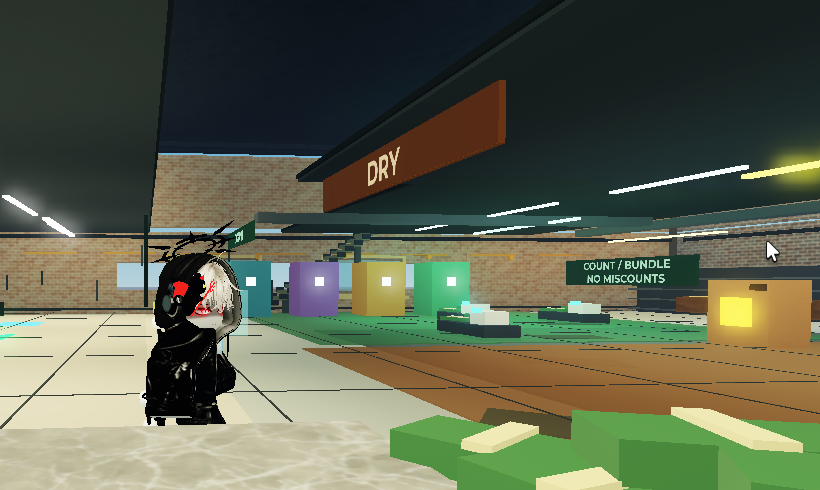

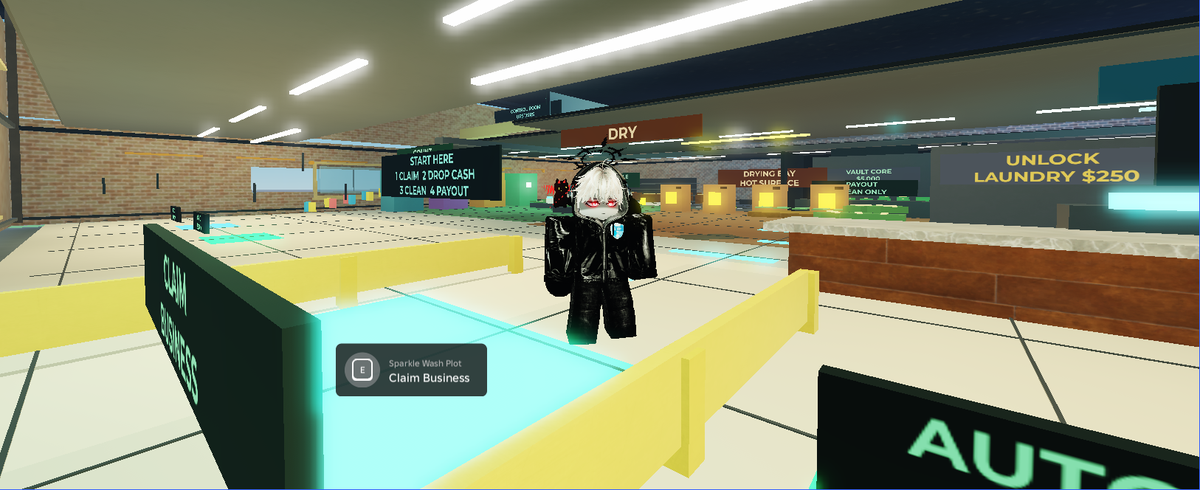

Latest playtest	Latest station detail

Development

npm install
npm run check
npm run validate:skill
npm run build:plugin

Pull requests receive automatic reviews from CodeRabbit, Qodo, and Sourcery. GitHubCodeQL scans JavaScript and TypeScript changes, while Dependabot opens grouped weeklydependency updates and immediate security-fix PRs. Automated suggestions still needto be verified against the tests and the Roblox Studio safety boundaries.

More detail: Contributing, Protocol, Safety, Troubleshooting, and Changelog.
