Isaac Sim MCP Server

Natural language control for NVIDIA Isaac Sim through the Model Context Protocol (MCP).

Connect any MCP-compatible IDE (Cursor, VS Code, Claude Code, Windsurf, JetBrains) to a running Isaac Sim instance and control it with plain-English prompts -- create robots, build scenes, run simulations, and debug physics all from your editor.

Highlights

• 39 tools across 8 categories -- scene, objects, lighting, robots, sensors, materials, assets, simulation
• 107+ robots auto-discovered from the Isaac Sim asset library (Franka, UR, Unitree, Boston Dynamics, and more)
• Step-and-observe debugging -- step the simulation and inspect prim positions, joint states, and physics in one call
• Hot-reload -- iterate on Python controllers without restarting Isaac Sim
• Multi-instance -- run multiple Isaac Sim sessions side by side on different ports
• Built for Isaac Sim 5.1.0 with a modular adapter layer for version isolation

Installation

Option A: pip install (recommended)

pip install isaacsim-mcp-server

This installs the MCP server and the isaacsim-mcp-server CLI. You still need the Isaac Sim extension from the repo (see Launching Isaac Sim below).

Option B: From source

git clone https://github.com/whats2000/isaacsim-mcp-server
cd isaacsim-mcp-server
./scripts/setup_python_env.sh

Requirements

Quick Start

1. Set up the environment

If you installed from source:

./scripts/setup_python_env.sh

2. Launch Isaac Sim with the extension

./scripts/run_isaac_sim.sh

You should see in the logs:

Registered 40 command handlers
Isaac Sim MCP server started on localhost:8766

export BEAVER3D_MODEL="<your beaver3d model name>"
export ARK_API_KEY="<your beaver3d api key>"
export NVIDIA_API_KEY="<your nvidia api key>"

3. Connect your IDE

Add the MCP server to your editor. Replace the path with your actual repo location.

claude mcp add isaac-sim /path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh

Or edit ~/.claude.json / .mcp.json:

{
  "mcpServers": {
    "isaac-sim": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh"
    }
  }
}

Create .vscode/mcp.json in your workspace:

{
  "servers": {
    "isaac-sim": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh"
    }
  }
}

Open Cursor Settings > MCP, or edit ~/.cursor/mcp.json:

{
  "mcpServers": {
    "isaac-sim": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh"
    }
  }
}

Edit the config file for your platform:

• macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
• Windows: %APPDATA%\Claude\claude_desktop_config.json
• Linux: ~/.config/Claude/claude_desktop_config.json

{
  "mcpServers": {
    "isaac-sim": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh"
    }
  }
}

Open Windsurf Settings > MCP or edit ~/.codeium/windsurf/mcp_config.json:

{
  "mcpServers": {
    "isaac-sim": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh"
    }
  }
}

Go to Settings > Tools > AI Assistant > MCP Servers and add the server. See the JetBrains MCP docs for details.

4. Start prompting

Check the connection with get_scene_info.
If the scene is empty, create a physics scene.

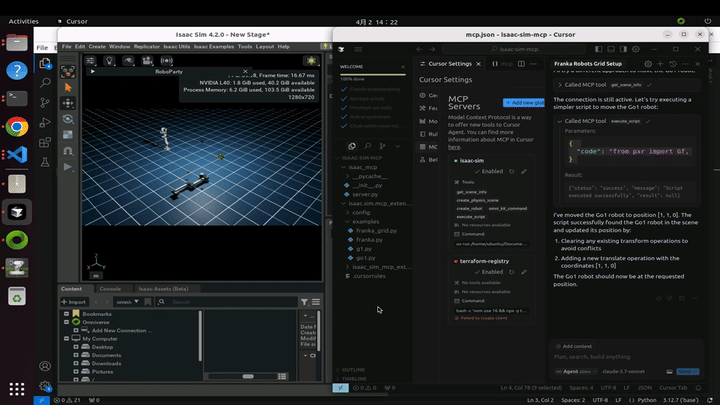

Add a Franka robot at the origin and a Go1 quadruped at [2, 0, 0].

Architecture

MCP Client (IDE)
      |
      v
isaacsim-mcp-server          (PyPI package / CLI)
      |
      v  TCP socket (localhost:8766)
      |
isaac.sim.mcp_extension      (Omniverse extension)
      |
      v
Handlers -> Adapter -> Isaac Sim 5.1.0 APIs

Tools

39 tools across 8 categories:

Scene: get_scene_info create_physics_scene clear_scene list_prims get_prim_info list_environments load_environment

Objects: create_object delete_object transform_object clone_object

Lighting: create_light modify_light

Robots: create_robot list_available_robots refresh_robot_library get_robot_info set_joint_positions get_joint_positions

Sensors: create_camera capture_image create_lidar get_lidar_point_cloud

Materials: create_material apply_material

Assets: import_urdf load_usd search_usd generate_3d

Simulation: play_simulation pause_simulation stop_simulation step_simulation set_physics_params execute_script get_simulation_state get_physics_state get_joint_config reload_script

Example Prompts

Scene bootstrap

Check the connection with get_scene_info. If the scene is empty, create a physics scene.
Add stronger lighting and place a camera that looks at the workspace.

Robot layout

Create three Franka robots in a row at [0,0,0], [2,0,0], and [4,0,0].
Then add a Go1 robot at [1, 3, 0].

Environment loading

List available environments, choose a warehouse-like one, and load it.
Create a camera and capture an image.

Asset search and 3D generation

Search for a rusty desk, load the best result near [0, 5, 0], scaled to [2, 2, 2].

Advanced Usage

Multiple Instances

Run multiple Isaac Sim sessions side by side. Each uses a different port (auto-assigned from 8766).

# First instance (default port 8766)
claude mcp add isaac-sim /path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh

# Second instance (port 8767)
claude mcp add isaac-sim-2 -e ISAAC_MCP_PORT=8767 -- /path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh

{
  "mcpServers": {
    "isaac-sim": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh"
    },
    "isaac-sim-2": {
      "command": "/path/to/isaacsim-mcp-server/scripts/run_mcp_server.sh",
      "env": { "ISAAC_MCP_PORT": "8767" }
    }
  }
}

Desktop Launcher (Linux)

Install a dedicated Isaac Sim MCP application icon:

./scripts/install_desktop_entry.sh

This creates a launcher that auto-assigns ports, waits for the extension socket, and cleans up on exit.

Recommended Workflow

1. Start with get_scene_info to verify the connection
2. Create a physics scene if the stage is empty
3. Prefer purpose-built tools before execute_script
4. Use list_available_robots / list_environments before loading
5. Use step_simulation with observe_prims and observe_joints for debugging
6. Use reload_script to iterate on controllers without restarting

Demo: Franka Pick-and-Place

A ready-to-run demo at demo/franka_pick_place.py using RMPflow for motion planning:

1. Create a physics scene, ground plane, and a Franka FR3 robot
2. Add two tables and a small cube on the first table
3. Wire the pick-and-place script into an Action Graph
4. Press Play -- the robot picks the cube and places it on the second table

Uses the observability tools: get_joint_config, step_simulation with observe_prims, get_physics_state, and reload_script.

Development

# Run the MCP inspector
./.venv/bin/python -m mcp dev ./isaac_mcp/server.py

The inspector is available at http://localhost:5173.

Setup Notes

Override defaults:

PYTHON_SPEC=3.11 ./scripts/setup_python_env.sh
ISAACSIM_ROOT=/opt/isaacsim ./scripts/run_isaac_sim.sh

If Isaac Sim says Can't find extension with name: isaac.sim.mcp_extension:

# Make sure you're in the repo root
pwd
test -f ./isaac.sim.mcp_extension/config/extension.toml && echo OK

Note: --ext-folder must point to the repo root, not to isaac.sim.mcp_extension/ directly.

Contributing

Pull requests are welcome. Improvements to tools, docs, adapters, and tests are all useful.
